Charpy Testing

When we consider the importance of material strength in engineering, we can’t overlook the significance of Charpy testing. This century-old method has become a cornerstone in evaluating how materials respond to sudden impacts. We’ve seen its applications span across industries, from aerospace to construction, providing critical data on material toughness and ductile-to-brittle transformations. But there’s more to Charpy testing than meets the eye. As we explore its history, principles, and modern applications, we’ll uncover how this seemingly simple pendulum test continues to shape our understanding of material behavior and influence design decisions in ways you might not expect.

Key Points

Charpy testing evaluates material toughness by measuring energy absorbed during impact fracture of a notched specimen.
The test uses a swinging pendulum to strike a standardized specimen, providing quantitative data on impact strength.
It aids in material selection, quality control, and determination of ductile-to-brittle transition temperatures.
Standardized procedures ensure consistent results, with specifications outlined by organizations like ASTM, EN, and ISO.
Charpy testing is widely used in industries such as aerospace, automotive, and construction for assessing material reliability.

History of Charpy Testing

The introduction of Charpy testing marked a significant advancement in materials science. We owe this breakthrough to Georges Charpy, who introduced the test in 1901 as a comparative method for evaluating materials’ impact strength. This innovative approach revolutionized how we evaluate material toughness, providing us with a standardized and reliable means of measurement.

As materials scientists and engineers, we’ve witnessed the evolution of Charpy testing from a simple quality control tool to a versatile and indispensable method. Today, we use it to evaluate the impact toughness of a wide range of materials, including metals, composites, ceramics, and polymers. The standardized Charpy V-notch specimen, with its precise dimensions and notch geometry, allows us to obtain consistent and comparable results across different materials and laboratories.

One of the most valuable aspects of Charpy testing is its ability to determine the ductile-to-brittle shift temperature of materials. This critical information helps us understand how materials behave under various conditions, enabling us to make informed decisions about their applications and safety limits. As we continue to push the boundaries of materials science, Charpy testing remains an essential tool in our collective arsenal.

Principles of Charpy Impact Test

Let’s examine the basic principles of the Charpy impact test, focusing on its setup and energy measurement.

We’ll first consider the test setup, which involves a notched specimen positioned precisely in the path of a swinging pendulum. This procedure is essential for evaluating material resilience under sudden loads, ensuring the accuracy and reliability of the results.

We’ll then explore how the energy absorbed during impact is quantified, typically through the measurement of the pendulum’s height after striking the specimen.

Test Setup and Procedure

Designed to evaluate material toughness and notch sensitivity, the Charpy impact test involves a carefully orchestrated procedure. We begin with specimen preparation, ensuring that each test piece meets standardized dimensions and notch configurations. This precision is essential for obtaining accurate and comparable results across different materials and testing environments.

Next, we focus on the calibration of equipment. Our pendulum-based testing machine must be properly adjusted to deliver consistent and measurable impact energy. We verify the machine’s accuracy and reset it to its initial position before each test. This step is similar in importance to procedures in hardness testing and other mechanical tests where precise calibration is vital for reliable data.

The core of our procedure involves striking the notched specimen with the pendulum. As we release the pendulum, we observe its trajectory and the specimen’s fracture behavior. The energy transfer during impact is our key measurement, which we calculate by comparing the pendulum’s heights before and after fracture.

Careful energy calculation is the final step in our process. We analyze the difference in potential energy between the pendulum’s initial and final positions, providing us with a quantitative measure of the material’s impact resistance. This data is invaluable across various industries for evaluating material performance under dynamic loading conditions.

Energy Absorption Measurement

Essential to the Charpy impact test is the principle of energy absorption measurement. We calculate this crucial value by comparing the hammer heights before and after fracture. This absorbed energy is vital for evaluating a material’s toughness, providing us with valuable insights into its behavior under impact conditions.

To guarantee accuracy in our measurements, we must pay close attention to notch dimensions and sample size. These factors significantly impact the energy absorption values we obtain. We follow standardized methods, such as ASTM E23, which outline precise procedures for conducting Charpy impact tests and measuring energy absorption.

As we perform these tests, we’re not just collecting data; we’re uncovering the very essence of a material’s resilience. By quantifying the energy absorbed during fracture, we gain a deeper understanding of how materials respond to sudden, high-energy impacts. This knowledge is invaluable in our field, allowing us to make informed decisions about material selection and design.

Together, we’re pushing the boundaries of materials science, ensuring safer and more efficient structures in various industries.

Test Equipment and Setup

We’ll examine the key components of Charpy testing equipment, focusing on the pendulum impact machine, specimen support, and striker mechanism.

Our analysis will cover the proper setup procedures, including specimen alignment and secure mounting, which are critical for accurate test results.

We’ll also discuss the importance of regular calibration and maintenance routines to guarantee the reliability and consistency of Charpy impact tests.

Pendulum Impact Machine Components

At the heart of Charpy testing lies the pendulum impact machine, a sophisticated apparatus designed to measure the energy absorption of materials during fracture. We utilize this fundamental piece of test equipment to quantify a material’s toughness and resistance to impact.

Let’s explore the key components of a pendulum impact machine. The pendulum itself consists of a swinging hammer with a specific mass. We depend on gravitational acceleration and the pendulum’s height before and after impact to calculate energy transfer.

The anvil and specimen support form the base where we position our notched specimen. We’ve also integrated energy absorption measurement devices to accurately record the impact results.

As fellow materials engineers, we understand that proper alignment and calibration of the pendulum impact machine are essential for obtaining reliable test data. We follow standardized procedures outlined in ASTM E23, ISO 148-1, and EN 10045-1 to guarantee consistency across our testing practices.

Specimen Support and Striker

Moving from the broader components of the pendulum impact machine, let’s focus on two vital elements: the specimen support and striker. In Charpy testing, we horizontally position our specimen between two vertical bars, forming the specimen support system. This setup guarantees proper alignment and stability during the impact event.

The striker, essentially a pendulum weight, plays a key role in our testing process. We carefully position it to strike the specimen precisely at the notch location. This alignment is crucial for inducing fracture and obtaining accurate results. We can’t stress enough the importance of proper positioning in our testing procedures.

To measure the impact energy, we calculate the difference in the striker’s height before and after impact. This energy, absorbed by our specimen, is a fundamental parameter we analyze in Charpy testing. It provides valuable insights into the material’s toughness and fracture behavior.

As we conduct these tests, we’re not just gathering data; we’re contributing to a broader understanding of material properties. Our collective efforts in Charpy testing help advance materials science and engineering, ensuring safer and more reliable designs across various industries.

Calibration and Maintenance Procedures

Charpy impact testing’s dependability hinges on rigorous adjustment and upkeep procedures. We must guarantee our Charpy impact tests consistently deliver precise results by adhering to standardized protocols for equipment maintenance and verification.

Let’s start with adjustment. We need to verify the hammer weight, pendulum height, and impact energy measurement accuracy. This process is vital for maintaining the integrity of our Charpy impact tests.

We’ll also focus on proper alignment of the pendulum and specimen supports, as this directly affects the precision of our results.

Regular upkeep is equally important. We’ll lubricate moving parts, inspect anvils and supports, and perform routine adjustment checks.

Don’t forget to periodically verify instrumentation, including strain gauges and data acquisition systems.

Specimen Preparation and Standards

Specimen standardization forms the cornerstone of reliable Charpy impact testing. We adhere to strict guidelines for specimen size and preparation to maintain consistent and accurate results. The standard Charpy specimen measures 55mm in length with a 10mm square cross-section, featuring a carefully machined 2mm deep V-notch with a 0.25mm tip radius. However, we also recognize the importance of flexibility in certain situations, which is why sub-size specimens are available for materials with specific requirements.

When it comes to notch configurations, we’ve several options at our disposal. The V-notch is most common, but U-notch and keyhole notch variants are also utilized depending on the material properties we’re evaluating. It’s essential that we follow the specifications outlined by organizations like ASTM, EN, and ISO to maintain consistency across tests and laboratories.

Our meticulous approach to specimen preparation ensures that we can rely on the data we gather. By controlling variables such as specimen size, geometry, and notch specifications, we create a foundation for accurate and repeatable impact testing outcomes. This attention to detail allows us to confidently assess material toughness and make informed decisions in our engineering applications.

Testing Procedure and Methodology

At the heart of Charpy testing lies a carefully orchestrated procedure designed to yield precise and reproducible results. We begin by verifying our specimens meet standardized dimensions and notch configurations, as these are essential for accurate data. Our next step involves calibrating the Charpy impact testing machine, a simple yet effective pendulum-based apparatus.

Once we’ve prepared and positioned our notched specimen, we’re ready to conduct the test. We release the pendulum, allowing it to strike the specimen with a predetermined amount of energy. The pendulum’s swing continues after impact, and we measure the difference in height between its starting and ending positions. This difference allows us to calculate the energy absorbed during fracture.

We repeat this process multiple times to ensure statistical validity.

Throughout our testing, we’re not just collecting quantitative data on energy absorption; we’re also observing qualitative aspects of the fracture behavior. By following this rigorous methodology, we gain valuable insights into material properties that help us make informed decisions in various engineering applications. Together, we’re contributing to a safer and more reliable material world through Charpy testing.

Data Analysis and Interpretation

Every Charpy test yields a wealth of data that requires careful analysis and interpretation. We begin by calculating the absorbed energy in joules, which gives us a quantitative measure of the material’s toughness. This is pivotal for our understanding of how the material behaves under impact conditions.

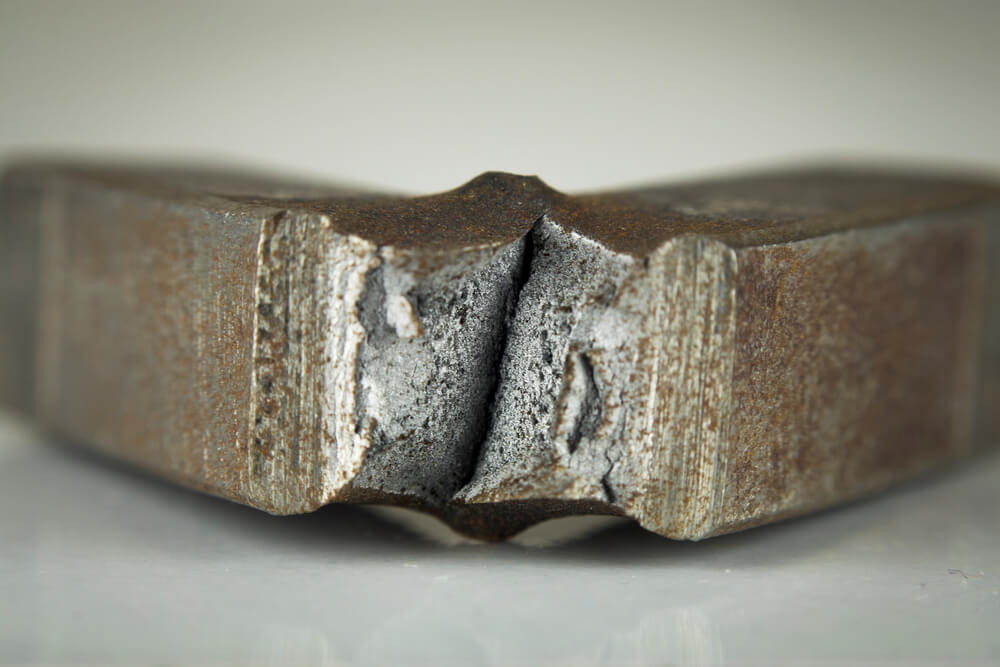

We don’t stop at numbers, though. We also perform a qualitative assessment of the fracture surfaces, looking for signs of brittle or ductile characteristics. This visual analysis complements our quantitative data, providing a more inclusive picture of the material’s behavior.

As we analyze the results, we pay close attention to notch sensitivity, which helps us predict how the material might perform under real-world impact loads.

By comparing test results at different temperatures, we can determine the ductile-brittle transformation temperature – a critical factor in many applications.

Our interpretation of Charpy test data isn’t just an academic exercise. It’s essential for quality control, failure analysis, and material improvement across various industries. We’re not just crunching numbers; we’re providing valuable insights that can lead to safer, more reliable products and structures.

Applications in Various Industries

The versatility of Charpy testing spans various industries, each harnessing its power to guarantee the safety and reliability of important components. In aerospace and defense, we rely on Charpy testing to evaluate the impact strength of materials used in essential applications.

The automotive sector utilizes this method to assess vehicle components’ crashworthiness, ensuring our safety on the roads.

We can’t overlook the importance of Charpy testing in structural steel and construction. It’s our go-to method for determining materials’ ability to withstand impact loads, preventing catastrophic failures in our buildings and infrastructure.

In the field of welding, we depend on Charpy testing to evaluate procedures and maintain the durability of welded joints across various industrial applications.

Our safety-critical components in oil and gas, manufacturing, and transportation industries all benefit from Charpy testing. We use it to assess impact toughness and notch sensitivity, enabling us to make informed decisions about material selection.

Advantages and Limitations

We’ll now examine the key benefits and notable drawbacks of Charpy testing.

This method offers significant advantages, including:

cost-effectiveness,
wide industry acceptance, and
valuable insights into material behavior under impact loads.

However, we must also consider its limitations, such as:

the potential inability to accurately represent real-world service conditions, and
the lack of direct correlation to fracture toughness in some cases.

Key Benefits

Charpy testing stands out as a valuable method for evaluating material toughness and notch sensitivity, offering several key benefits. We can rely on this cost-effective approach for evaluating materials across various industries, including aerospace, automotive, and construction. It’s an essential tool in our quality control and assurance processes, helping us maintain the highest standards in critical applications.

One of the most significant advantages is the test’s ability to identify brittle-to-ductile shift temperatures. This information is vital for us to ensure materials perform efficiently under different environmental conditions. Additionally, we gain qualitative insights into material fracture behavior through visual examination of specimen surfaces.

Let’s consider the key benefits of Charpy testing:

Benefit	Application	Impact
Cost-effective	Quality control	Efficient resource allocation
Widely applicable	Multiple industries	Standardized testing
Shift temperature	Critical applications	Enhanced safety
Fracture behavior	Material selection	Improved design
Comparative analysis	Product development	Optimized performance

While Charpy testing provides valuable comparative data, we must remember that it may not always directly correlate with fracture toughness. Nevertheless, its versatility and reliability make it an essential tool in our material evaluation toolkit.

Notable Drawbacks

Despite its widespread use and numerous advantages, Charpy impact testing comes with several notable limitations that we must consider. One of the primary drawbacks is its qualitative nature, which focuses on energy absorption and fracture surface examination rather than providing precise mechanical properties. This limitation can make it challenging for us to obtain detailed fracture mechanics data, which is essential for in-depth material analysis.

Another concern is that Charpy testing may not accurately reflect real-world service conditions due to the standardized notched specimens used. While this standardization allows for consistent comparisons between materials, it may not fully capture the behavior of materials under dynamic loading in actual applications.

We should also be aware that the test’s effectiveness in evaluating notch sensitivity and brittle behavior varies depending on the material type.

Although Charpy testing is cost-effective and widely accepted for quality control purposes, it’s important to recognize that it may not be suitable for all materials or applications. As engineers and materials scientists, we must carefully consider these limitations when interpreting test results and determining the most appropriate evaluation methods for our specific needs.

Charpy Testing Vs. Other Methods

Comparisons between impact testing methods reveal distinct differences in approach and application. We’ll explore how Charpy testing stands out from other methods, particularly Izod and K testing.

Charpy and Izod testing share similarities as impact toughness evaluations, but they differ in specimen orientation and specific standards. Charpy testing, governed by ASTM E23 and ISO 148-1, typically uses V-notch or U-notch specimens. In contrast, Izod testing employs its own unique standards and specimen configuration.

When comparing Charpy testing to K testing, we observe fundamental differences in their focus:

Charpy assesses energy absorbed during fracture
K testing evaluates resistance to crack initiation and propagation
Charpy uses simpler specimen geometry
K testing requires more complex specimen preparation

We find Charpy testing widely adopted in aerospace and automotive industries for quality control purposes. Its simplicity and standardization make it a preferred choice in many applications.

However, Izod testing may be favored in specific material evaluations where its unique specimen orientation provides valuable insights.

Understanding these distinctions allows us to select the most appropriate testing method for our specific needs, ensuring we obtain the most relevant data for our materials and applications.

Recent Developments and Innovations

How has Charpy testing evolved in recent years? We’ve witnessed significant advancements in this vital impact test method, enhancing its precision and applicability. Instrumentation improvements now allow us to measure impact energy with unprecedented accuracy, providing deeper insights into material properties and fracture behavior.

We’re seeing a shift in our understanding of Charpy testing through innovative modeling techniques. These advancements enable us to better interpret the complex interactions during the test, refining our analysis of material response under dynamic loading conditions.

Our community has focused on strengthening the correlation between Charpy test results and real-world material properties, a development that’s essential for improving testing accuracy and reliability.

As we push the boundaries of materials science, we’re expanding Charpy testing’s applicability. Ongoing research aims to optimize procedures for a wider range of materials and testing conditions, ensuring we stay at the forefront of materials characterization.

The evolution of Charpy testing from a quality control tool to a thorough structural integrity assessment method underscores its enduring relevance in our field, cementing its position as an indispensable technique in modern materials testing.

Frequently Asked Questions

Does Charpy Test Measure Fracture Toughness?

No, we don’t use the Charpy test to directly measure fracture toughness. While it gives us insights into a material’s impact resistance, we rely on other methods like J-integral or stress intensity factor for precise fracture toughness evaluation.

Is Charpy Testing Destructive?

Yes, it’s destructive. We fracture specimens during testing, rendering them unusable afterward. We’re sacrificing samples to gain valuable insights into material toughness. It’s a necessary trade-off we make to guarantee safety and reliability in our industry.

What Is the Difference Between Charpy Impact Test and Hardness Test?

We’ll explain the key differences. Charpy impact tests measure toughness through energy absorption during fracture, while hardness tests evaluate surface resistance to indentation. We use dynamic loading in Charpy tests, but static loading in hardness tests.

How to Interpret Charpy Impact Test Results?

We interpret Charpy impact test results by analyzing energy absorption values. We’ll examine the fracture surface, determine notch toughness, and identify the ductile-to-brittle shift temperature. We’ll also compare results across materials to assess relative toughness.

The Takeaway

We’ve examined the critical role of Charpy testing in material evaluation. It’s evident that this method provides essential data on impact strength and toughness, influencing material selection and design across industries. While we’ve highlighted its advantages, we must also acknowledge its limitations. As we’ve seen, ongoing innovations continue to refine the technique. We’ll need to stay abreast of these developments to guarantee we’re utilizing the most effective testing methodologies for our specific applications.
